Solid Aluminium Panels for Aluminium Cladding
ALUCOLUX® Product Range:
- Thickness: 2 or 3 mm
- Width: 1000 mm, 1250 mm, 1500 mm
- Length: </=6000 mm
ALUCOLUX® is a coil-coated solid aluminium panels widely used for architectural cladding worldwide.
ALUCOLUX® features a multi-coat, multi-bake process on a continuous coil coating line using the highest grade of PVDF/FEVE paint system. This process not only ensures the colour consistency of aluminium panels but also long-term durability and renders them non-combustible.
Unique patterns resembling the look & feel of a real wood and stone are also possible with ALUCOLUX® aluminium wall panels.
PDF [2.67 MB]Bending

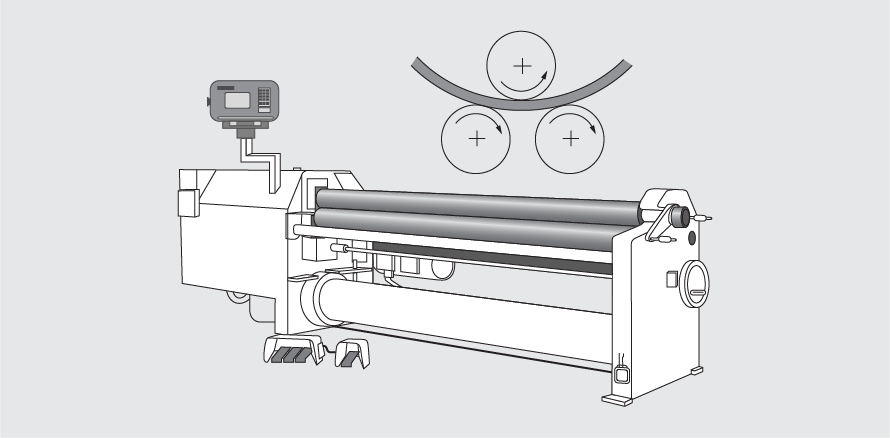

– Bending of ALUCOLUX® can be done by using a roll bending machine.
– This can be done using three or four-roll machines.
– The panel to be bent is clamped between two cheeks.
– The projecting edge is bent around the upper clamping cheek or former using the movable swivel bar.
– The bending radius is determined by interchangeable formers attached to the upper clamping cheek.
– Minimum bending radius: r=400mm
Frequently Asked Questions about ALUCOLUX®
Why is aluminium cladding preferred for facades?
The Facade cladding work done with aluminium is lightweight, durable, and resistant to corrosion, which enhances the beauty and performance of modern buildings. It is available in various finishes, allowing architects to achieve a sleek, contemporary look while ensuring long-term protection against environmental elements.
What is aluminium wall cladding?
For exteriors, aluminium wall cladding forms a protective and decorative layer over the building. It is composed of aluminium sheet fixed on the substructure of aluminium, which in turn is fixed to the building’s structure. It acts like an envelope over the building, protecting it from the environmental elements. It is also known as a rainscreen. It improves durability, weather resistance, and adds to the overall attractiveness of the building. Pre-coated aluminium wall cladding panels such as ALUCOLUX® comes in a variety of surface finishes, making them excellent for modern architectural projects.
Will the paint crack on the folded edges?
With ALUCOLUX® you do not have to worry about cracks on the edges because we use the highest grade of PVDF or FEVE paint on continuous coil coating line.
Is there a need to weld the edges of cassette/tray panels?
There is no need to weld ALUCOLUX® panels. We can provide technical support on how to route and fold these panels or provide semi-fabricated (M2M) panels or fully-fabricated (R2I) panels from our plant.
Is there any Warranty?
Yes. ALUCOLUX® comes with a 15 years product and surface warranty*.
(*Terms & conditions apply)
Can we fabricate ALUCOLUX® despite it being already pre-coil coated?
Yes you can. Kindly refer to our processing guide or contact our representative for more information or assistance.
How deep should the routing be done to fold the panel and retain strength?
On a 3mm panel the routing should be ideally between 1.5mm to 2.3mm. On a 2mm panel the routing should be ideally between 1mm to 1.3mm. See our processing guide for more details.
What are the benefits of aluminium cladding panels in architectural work?
Aluminium cladding panels offer numerous benefits such as:
Durability – Solid Aluminium panels are resistant to corrosion, weathering and environmental factors ensuring long-term performance.
Design Flexibility – Solid aluminium sheets can be fabricated into complex patterns and shapes using conventional processing methods.
Range – Pre-coated, coloured aluminium sheets come in a variety of surface finishes, sizes and thicknesses to offer endless creative possibilities.
Fire Resistance – Pre-coated PVDF/FEVE aluminium panels are non-combustible helping designers to offer non-combustible cladding solutions that can adhere to the toughest fire safety standards.
Sustainability – Aluminium is 100% recyclable making it an eco-friendly option from a green building point of view.
Does ALUCOLUX® offer customised solid aluminium panels?
We do offer customised solid aluminium panels tailored to meet unique architectural requirements. Through our Value Added Services we don’t only customize the colour but also offer Made to Measure Panels (M2M) and Ready to Install Panels (R2I). (Read more)
What is the lifespan of aluminium cladding?
There is no fixed lifespan for aluminum cladding. The lifespan depends on a few factors, such as quality of material, coating & finishing, installation quality, enviromental factors, etc. When aluminium is high quality, with the correct alloy composition and thickness, the cladding is bound to last longer. They should also be installed professionally, with precision. Improper installation of the aluminium cladding panels can lead to issues like water infiltration, thermal expansion, and other problems. The environment the aluminium cladding is exposed to also determines its durability. Reputable manufacturers offer a wide range of warranties. Some offer warranties of about 20 to 30 years.
Is aluminium cladding better than steel cladding?
Both types of cladding have their own strengths; it isn’t that one is better than the other. Aluminium cladding may be better for projects that prioritize lightweight design, resistance from corrosion, and flexibility of design. These cladding panels is also easy to install. Steel cladding, on the other hand, may be more suitable for projects that require exceptional strength, heat resistance, and high-impact resistance. The “better” of the two depends on the type of project for which you need them, considering the design requirements, budget constraints, and environmental conditions.
