Solid Aluminium Panels for Aluminium Cladding
ALUCOLUX® Product Range:
- Thickness: 2 or 3 mm
- Width: 1000 mm, 1250 mm, 1500 mm
- Length: </=6000 mm
ALUCOLUX® is a coil-coated solid aluminium panels widely used for architectural cladding worldwide.
ALUCOLUX® features a multi-coat, multi-bake process on a continuous coil coating line using the highest grade of PVDF/FEVE paint system. This process not only ensures the colour consistency of aluminium panels but also long-term durability and renders them non-combustible.
Unique patterns resembling the look & feel of a real wood and stone are also possible with ALUCOLUX® aluminium wall panels.
PDF [2.67 MB]Cleaning and maintenance
Annual cleaning is recommended. The surfaces should be cleaned either manually using a soft brush or using a high-pressure cleaner (max. 50 bar) with clean water. If necessary, a mild cleaning agent (pH 6-7) may be added, up to a maximum of 10%.
Cleaning should take place from top to bottom. After cleaning, rinse with water to remove any residue that could be left behind by a cleaning agent.
Do not clean surfaces heated by the sun (>40°C). Do not use highly alkaline cleaning agents such as potassium hydroxide,
sodium carbonate or caustic soda, any strong acid products or highly abrasive cleaning agents such as household cleaning products that could corrode the paint.
Transportation and storage
To protect ALUCOLUX® pre-coated solid aluminium panels from mechanical damage and weather, please follow the instructions thoroughly:

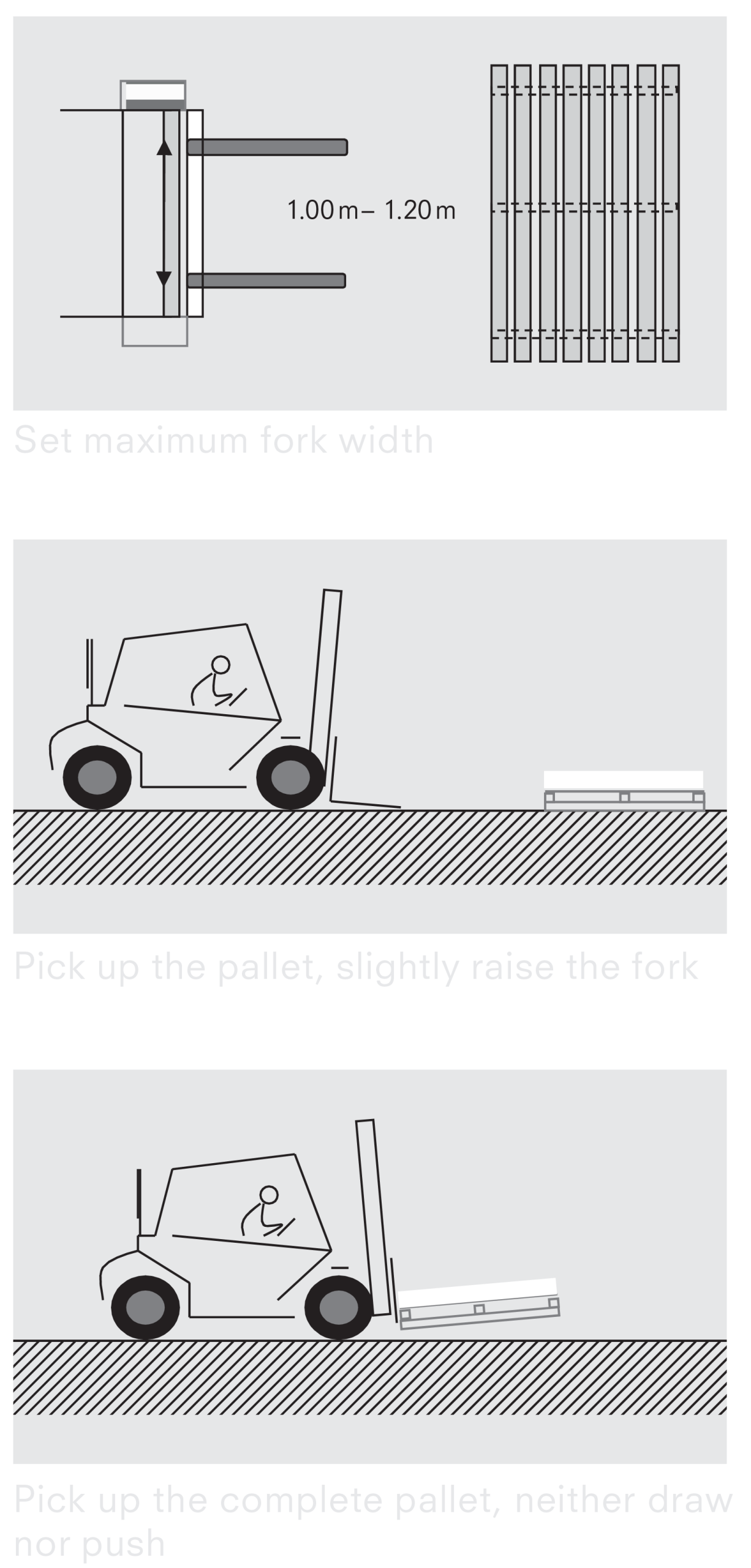

– Handle the pallets with utmost care during transportation and loading.
– Upon delivery, examine the pallets for any damage due to transportation or moisture.
– Any panels that are exposed to moisture must be dried to avoid spots or corrosion. In case of damages please report it to the respective forwarding agent.
– Store the pallets away from moisture, rain or any other form of contact with water or liquids. Avoid condensation when moving the panels from colder to warmer rooms.
– Stack only three pallets of similar dimensions horizontally above one another with the heaviest at the bottom. Do not let the panels stand vertically.
– While lifting, do not slide the panels over each other to avoid scratches. The panels must be carried by two people securely holding all four corners with gloves to avoid staining.
– Do not put anything between two panels while stacking, to avoid markings.
To ensure optimum care from the protective film please follow the instructions thoroughly:
– Storing the panels for more than three months may render the protective film tough to remove. Exposure to direct sunlight or fluctuations in temperatures could reduce the durability of the film.
– Do not mark the protective film with inks (markers), tapes or labels. The solvent or plasticizer may penetrate the film and affect the lacquered surface.
– Partial peeling of the protective film may cause dirtying of the edges that could affect its bounding property.
– Remove the protective film not longer than 45 days after the assembly. Exposure to natural elements may make it difficult to remove later.
– Do not remove the protective film at temperatures under 0°C.
Frequently Asked Questions about ALUCOLUX®
Why is aluminium cladding preferred for facades?
The Facade cladding work done with aluminium is lightweight, durable, and resistant to corrosion, which enhances the beauty and performance of modern buildings. It is available in various finishes, allowing architects to achieve a sleek, contemporary look while ensuring long-term protection against environmental elements.
What is aluminium wall cladding?
For exteriors, aluminium wall cladding forms a protective and decorative layer over the building. It is composed of aluminium sheet fixed on the substructure of aluminium, which in turn is fixed to the building’s structure. It acts like an envelope over the building, protecting it from the environmental elements. It is also known as a rainscreen. It improves durability, weather resistance, and adds to the overall attractiveness of the building. Pre-coated aluminium wall cladding panels such as ALUCOLUX® comes in a variety of surface finishes, making them excellent for modern architectural projects.
Will the paint crack on the folded edges?
With ALUCOLUX® you do not have to worry about cracks on the edges because we use the highest grade of PVDF or FEVE paint on continuous coil coating line.
Is there a need to weld the edges of cassette/tray panels?
There is no need to weld ALUCOLUX® panels. We can provide technical support on how to route and fold these panels or provide semi-fabricated (M2M) panels or fully-fabricated (R2I) panels from our plant.
Is there any Warranty?
Yes. ALUCOLUX® comes with a 15 years product and surface warranty*.
(*Terms & conditions apply)
Can we fabricate ALUCOLUX® despite it being already pre-coil coated?
Yes you can. Kindly refer to our processing guide or contact our representative for more information or assistance.
How deep should the routing be done to fold the panel and retain strength?
On a 3mm panel the routing should be ideally between 1.5mm to 2.3mm. On a 2mm panel the routing should be ideally between 1mm to 1.3mm. See our processing guide for more details.
What are the benefits of aluminium cladding panels in architectural work?
Aluminium cladding panels offer numerous benefits such as:
Durability – Solid Aluminium panels are resistant to corrosion, weathering and environmental factors ensuring long-term performance.
Design Flexibility – Solid aluminium sheets can be fabricated into complex patterns and shapes using conventional processing methods.
Range – Pre-coated, coloured aluminium sheets come in a variety of surface finishes, sizes and thicknesses to offer endless creative possibilities.
Fire Resistance – Pre-coated PVDF/FEVE aluminium panels are non-combustible helping designers to offer non-combustible cladding solutions that can adhere to the toughest fire safety standards.
Sustainability – Aluminium is 100% recyclable making it an eco-friendly option from a green building point of view.
Does ALUCOLUX® offer customised solid aluminium panels?
We do offer customised solid aluminium panels tailored to meet unique architectural requirements. Through our Value Added Services we don’t only customize the colour but also offer Made to Measure Panels (M2M) and Ready to Install Panels (R2I). (Read more)
What is the lifespan of aluminium cladding?
There is no fixed lifespan for aluminum cladding. The lifespan depends on a few factors, such as quality of material, coating & finishing, installation quality, enviromental factors, etc. When aluminium is high quality, with the correct alloy composition and thickness, the cladding is bound to last longer. They should also be installed professionally, with precision. Improper installation of the aluminium cladding panels can lead to issues like water infiltration, thermal expansion, and other problems. The environment the aluminium cladding is exposed to also determines its durability. Reputable manufacturers offer a wide range of warranties. Some offer warranties of about 20 to 30 years.
Is aluminium cladding better than steel cladding?
Both types of cladding have their own strengths; it isn’t that one is better than the other. Aluminium cladding may be better for projects that prioritize lightweight design, resistance from corrosion, and flexibility of design. These cladding panels is also easy to install. Steel cladding, on the other hand, may be more suitable for projects that require exceptional strength, heat resistance, and high-impact resistance. The “better” of the two depends on the type of project for which you need them, considering the design requirements, budget constraints, and environmental conditions.
